Bison 3597 3-Jaw Oil Country Chuck with Large Through-Hole, 20" Diameter - 7-819-2000S
Brand: Bison- SKU:
- 7-819-2000S
- ID:
- 361689
$14,195.00

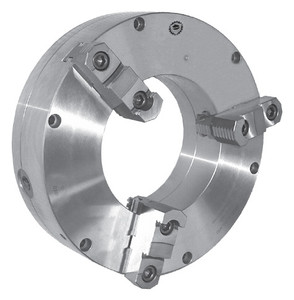

Bison 3597 3-Jaw Oil Country Chuck
with Large Through-Hole, 20" Diameter
7-819-2000S
20" Dia. Self-Centering Scroll Chuck
Features:
- BISON OIL COUNTRY CHUCKS with large through-holes are designed for gripping long workpieces or pipes during machining
- Hardened and ground working surfaces
- Balanced scroll plate
- High gripping force
- High accuracy
- Chucks can work individually or in pairs, mounted on opposite sides of the lathe spindle
Standard Accessories:
- 1 Set of hard top jaws
- 1 Set of soft top jaws*
- 1 Set of hard master jaws
- 1 Wrench
* Soft top jaws not included with 3597-12" and 3597-20"
Specifications:
Item Number | 7-819-2000S |
Type | 3597-20" |
A | 20.28" |
B | 4.72" |
C | 0.20" |
D | 16.54" |
E | 12.60" |
F | 18.03" |
F1 | 18.96" |
J | 3.11" |
M | 6xM16 |
M1 | 6xM16 |
Clamping Range | 4.72 - 19.69" |
Max. RPM | 800 |
Weight | 264.55 lbs. |
View Specification Sheet
See all Bison 3597 3-Jaw Oil Country Chucks with Large Through-Hole
