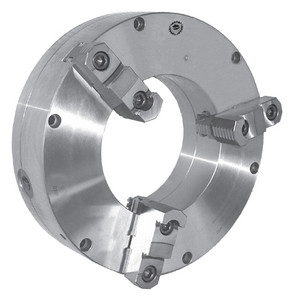

Bison 3597 3-Jaw Oil Country Chucks with Large Through-Hole

Self-Centering Scroll Chucks


Features:

  • BISON OIL COUNTRY CHUCKS with large through-holes are designed for gripping long workpieces or pipes during machining
  • Hardened and ground working surfaces
  • Balanced scroll plate
  • High gripping force
  • High accuracy
  • Chucks can work individually or in pairs, mounted on opposite sides of the lathe spindle


Standard Accessories:

  • 1 Set of hard top jaws
  • 1 Set of soft top jaws*
  • 1 Set of hard master jaws
  • 1 Wrench

* Soft top jaws not included with 3597-12" and 3597-20"


Specifications:

Item Number 7-819-1200S 7-819-1600S 7-819-2000S 7-819-2600S
Type 3597-12" 3597-16" 3597-20" 3597-26"
A 12.40" 15.94" 20.28" 25.98"
B 3.82" 4.33" 4.72" 5.51"
C 0.20" 0.20" 0.20" 0.28"
D 10.24" 12.99" 16.54" 21.46"
E 5.71" 8.66" 12.60" 15.98"
F 11.26" 14.25" 18.03" 23.07"
F1 11.26" 15.00" 18.96" 24.41"
J 2.24" 2.64" 3.11" 3.43"
M 3xM16 6xM16 6xM16 6xM16
M1 3xM16 6xM12 6xM16 6xM16
Clamping Range 1.57 - 12.40" 5.43 - 15.98" 4.72 - 19.69" 19.69 - 24.80"
Max. RPM 2,500 1,000 800 600
Weight 103.62 lbs. 160.94 lbs. 264.55 lbs. 507.06 lbs.


View Specification Sheet
